Thermwood 5 Axis CNC Router For Sale E565

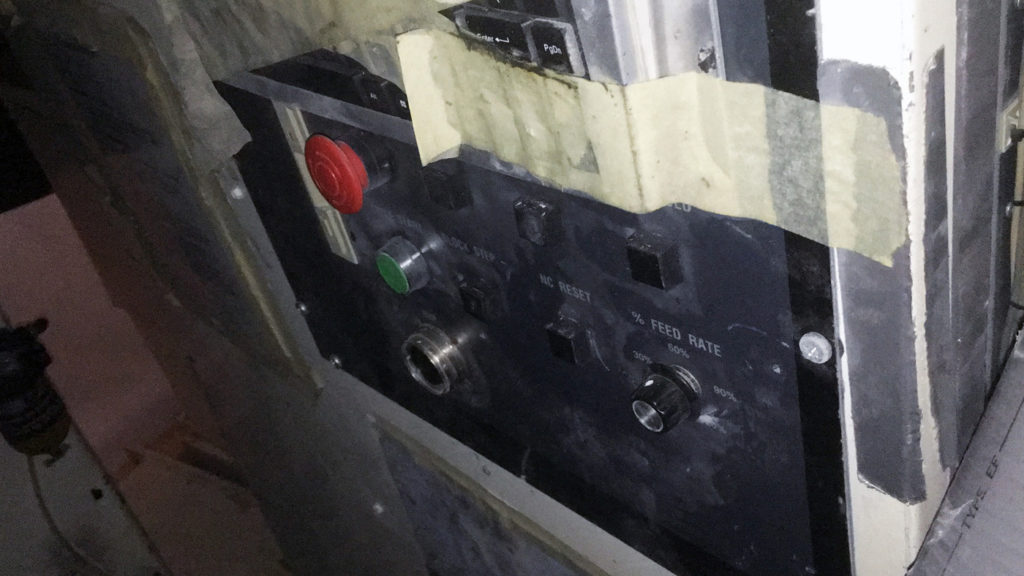

*These photos were taken before disassembly.*

SOLD: Used 2006 Thermwood 5 axis CNC router, equipped with 5 ft. x 10 ft. moving twin tables that can be slaved together for a total working area of 10 ft. x 10 ft. or used separately for faster production. The machine has 48 inches of stroke, a 10 hp HSD ATC spindle motor, plus a pop-out tool change rack. Router is controlled by Thermwood Super Controller with Windows 2000 platform.

Used 5 Axis CNC Router Specifications

Thermwood 5 axis CNC router
Originally manufactured in 2006
5 ft. x 10 ft. moving twin tables – can be slaved together for a total working area of 10 ft. x 10 ft. or used separately for faster production.
48 in. Z stroke
Pop out tool change rack
10 hp ATC HSD spindle motor
Thermwood Super Controller with Windows 2000 platform
440 V / 3 PH electrical requirements

Notes: This machine has been disassembled. This machine will require a controller retrofit and a rewire. The spindle turns without issue and it is unknown whether it needs to be replaced. There is rust on spindle and rails. A laser tracker is recommended at the time of setup depending on the accuracy sought.
