QF-2 18/12 20 63F Hiteco Spindle Motor
24 hp, 380 V, Long Nose, HSK63F
Hiteco ATC Spindle Motors

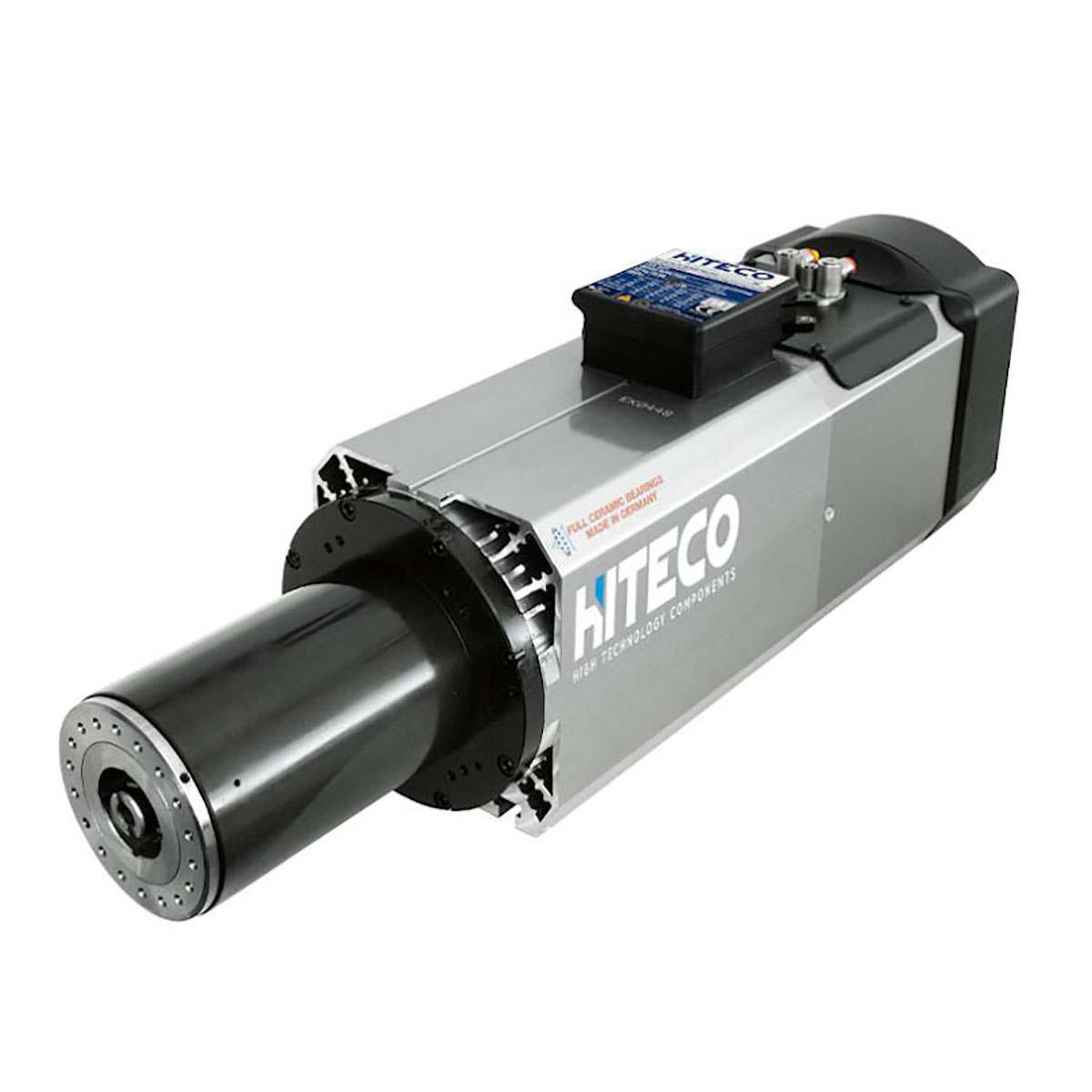

QF-2 18/12 20 63F NL PP Hiteco Spindle Motor

Call for price

QF-2 18/12 20 63F NL PP Hiteco Powertech 500 series ATC spindle motor, 24 hp / 18 kW, 12-20,000 RPM, HSK 63F, long nose, 380 V.

Call to order
Product Inquiry
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
SKU: QF-2 18/12 20 63F NL PP Categories: , , Tags: , , , Brand:

Product Description

QF-2 18/12 20 63F NL PP Hiteco Powertech 500 Series automatic tool change (ATC) electric spindle motor with quick release push button for manual tool change. 24 hp / 18 kw (S1), 12,000 RPM rated speed, 20,000 RPM max speed, HSK 63F tool taper, long nose, 380 V.

Additional Information

Horsepower

24
Kilowatt

18
Poles

4
Maximum Output Frequency (Hz)

400, 800
Manufacturer Part Number

QF-2 18/12 20 63F NL PP, QF-2 18/12 20 63F
Model
Tool Holder

HSK 63F
Tool Change

Automatic Tool Change
Cooling Method

Liquid Cooled
Voltage

380 V
Current (Amps)

36
Max Speed (RPM)

20,000
Rated Speed (RPM)

12,000
Housing Dimension

150 x 160 mm
Spindle Nose

Long Nose
Electric Connection

Plug and Play Connection

You may also like…

Hiteco Spindle Motors for CNC Routers and Robots

Hiteco Electrospindles are commonly used on industrial 3-axis and 5-axis CNC routers in wood, plastic, advanced materials, glass, stone and metal industries. CNC machinery utilizing these motors include SCM, CMS, DMS, Laguna Tools, New CNC, Morbidelli, Routech, Casadei-Busellato, Legacy and Camaster. Contact our sales team for more information about Hiteco Powertech, Robotech and Multitech series spindles.

Related products

Spindle Motor Lead Time & Availability

Spindle motor lead time and availability varies up to a year. Our in stock spindle motors can ship within a day or two. Special orders for out of stock motors can have lead times from 4-6 weeks to 6-9 months or longer.

CNC Spindle Motor Services

Contact our CNC router parts sales team for price, availability, and lead times on spindle motor repairs, replacements, and new installations. We can help specify the right spindle motor and VFD for your application.

Hiteco Powertech 500 Series Features

  • Manual Push Button for tool release and setup
  • Air pressurization of front bearings
  • Temperature Monitor for Front Bearings
  • Tool Clamping by HSK-F-63 taper
  • Automatic tool change controlled by double-acting pneumatic actuator
  • Automatic tool change managed by 2 sensors and 1 shaft rotation sensor
  • Constant power from 7500-15000 rpm max
  • Dual angular ceramic contact bearings front and rear
  • Quiet operation: Max 74 dBA at top speed
  • IP 55 protection rating
  • CE approved
