ISO 30 x ER 32 - 50mm, slotted nut

42213-W-50 Techniks Tool Holder ISO 30 x ER 32

Name: 42213-W-50 Techniks Tool Holder ISO 30 x ER 32
Brand: Techniks
SKU: 42213-W-50
Availability: InStock

$212.00

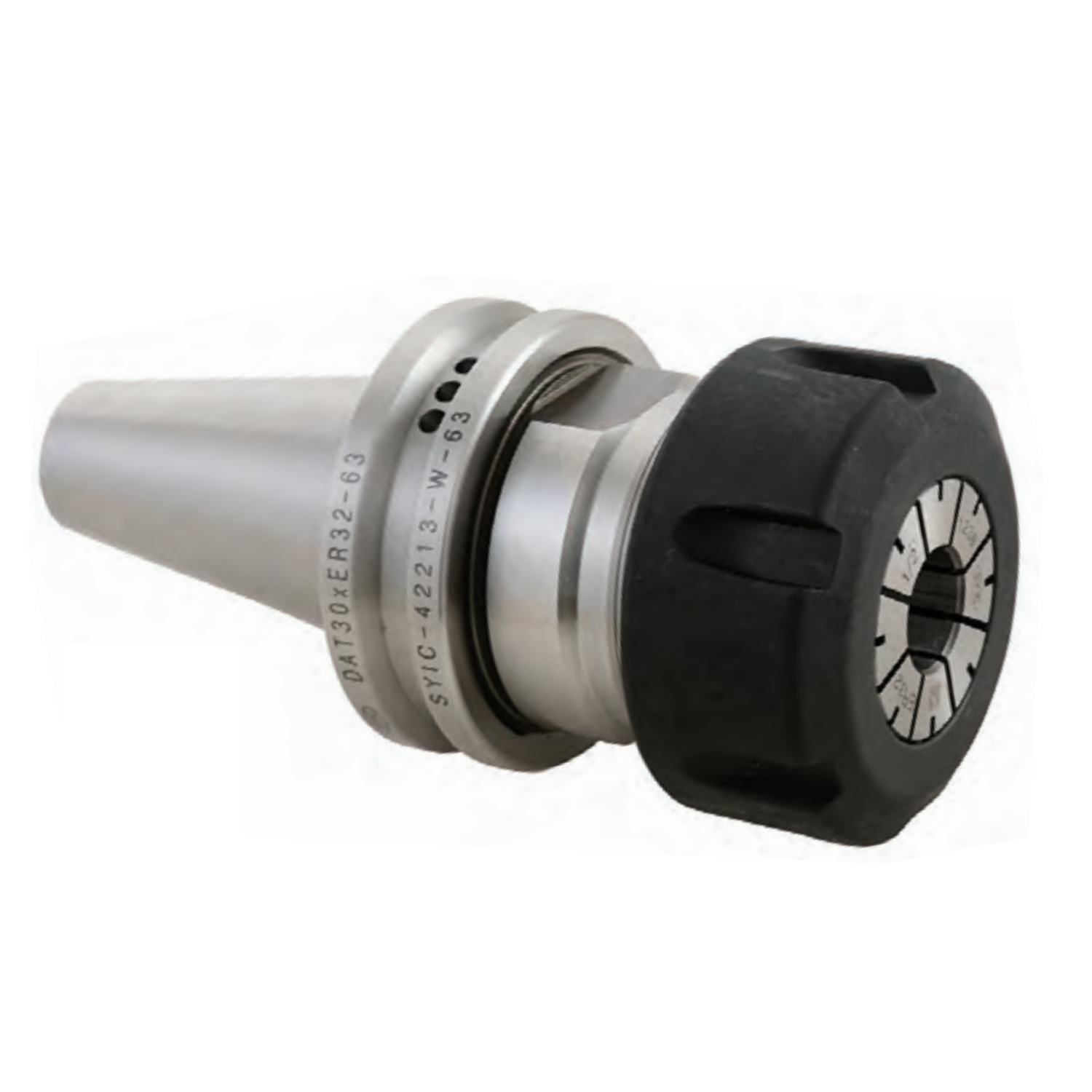

42213-W-50 Techniks ISO 30 ER collet chuck / tool holder, ISO 30 x ER 32 – 50 mm, includes Techniks slotted collet nut 46132.

Product Inquiry

SKU: 42213-W-50 Categories: ISO 30 Tool Holders, ISO ER Collet Chucks Tags: ER 32 Collet Chuck, ISO 30 x ER 32 Collet Chuck Brand: Techniks

Description
Additional Information

Product Description

42213-W-50 Techniks ISO 30 / SK 30 ER collet chuck / tool holder, ISO 30 x ER 32 – 50mm, with slot nut / collet nut 46132. Replaces Techniks part # 12213-W-50.

Rentention knob / pull stud, ER 32 collet and ER 32 wrench (04616) sold separately.

For Colombo spindle motors, use retention knob:
- Techniks 13001 / 49001 (clamping by fingers) or
- Techniks 49001-45 (clamping by balls)
For HSD spindle motors, use retention knob:
- Techniks 49019
