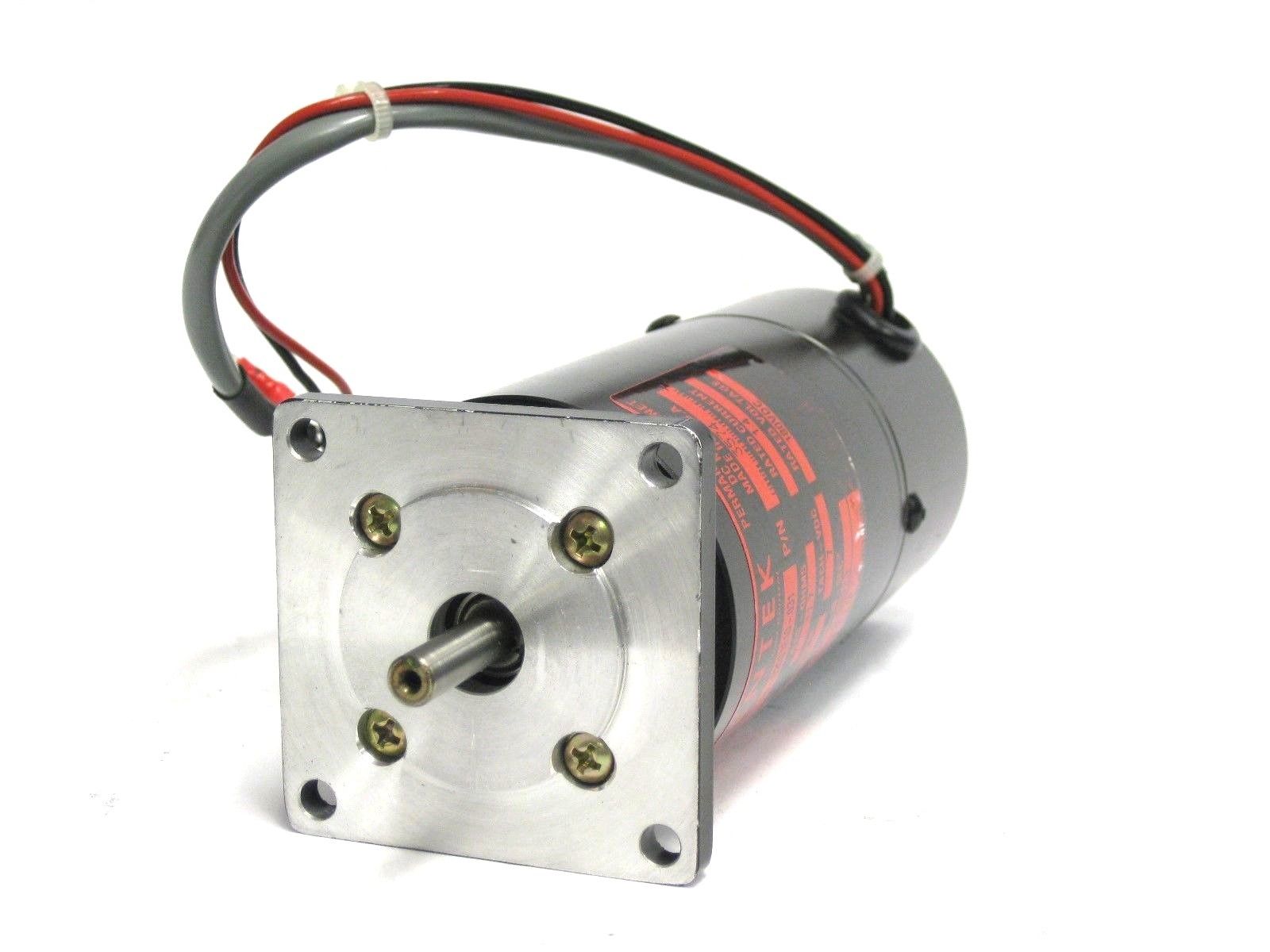

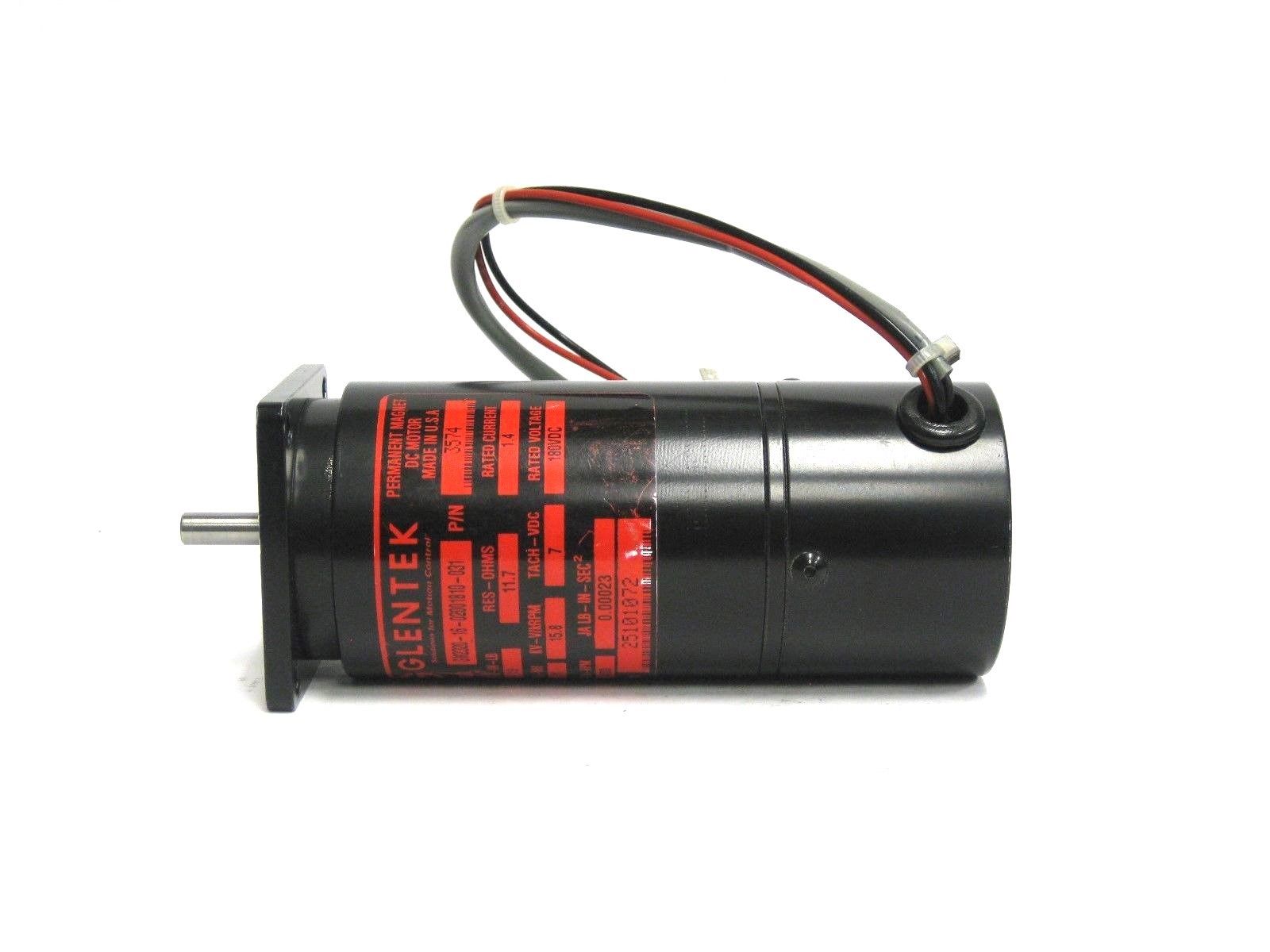

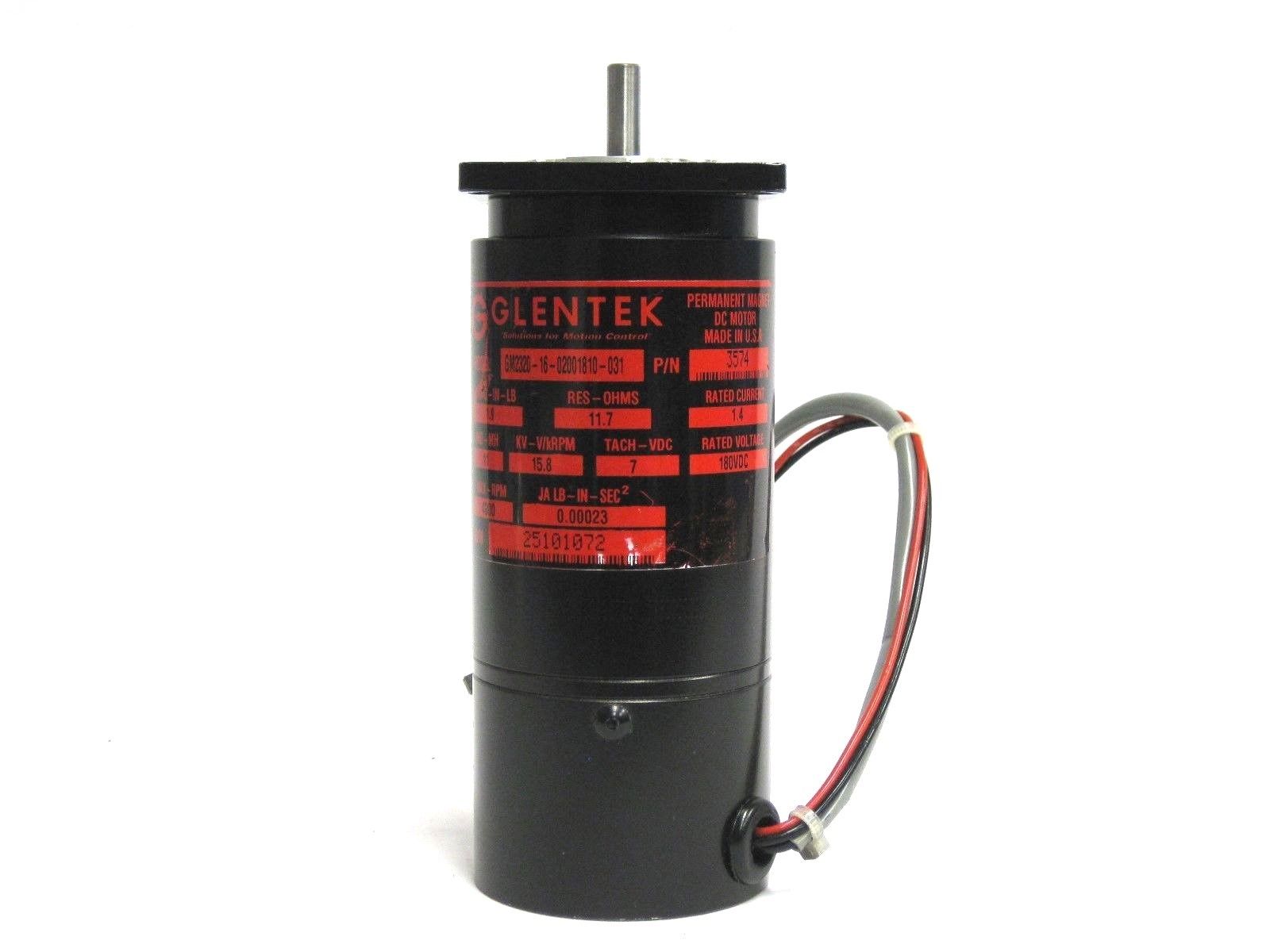

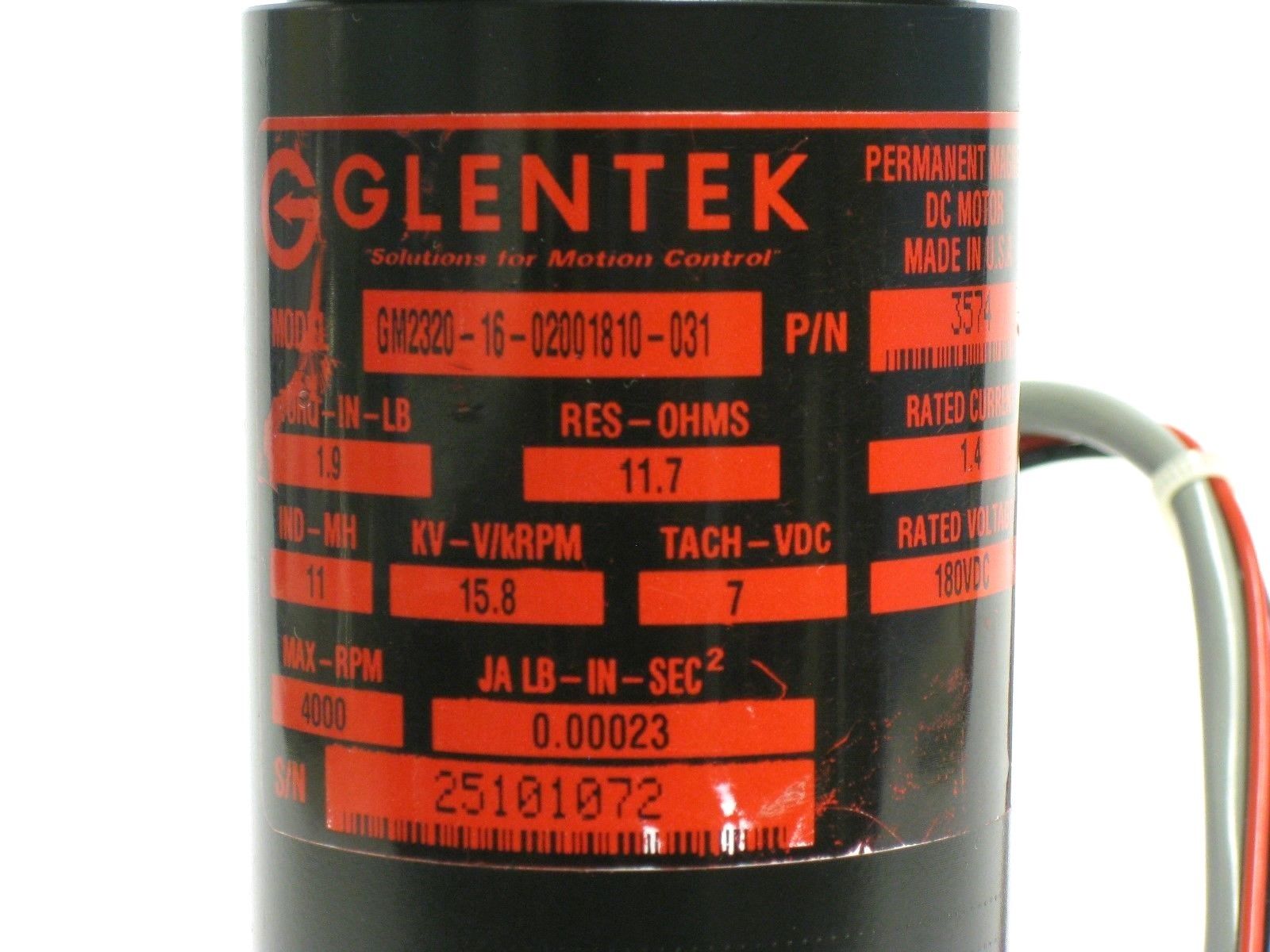

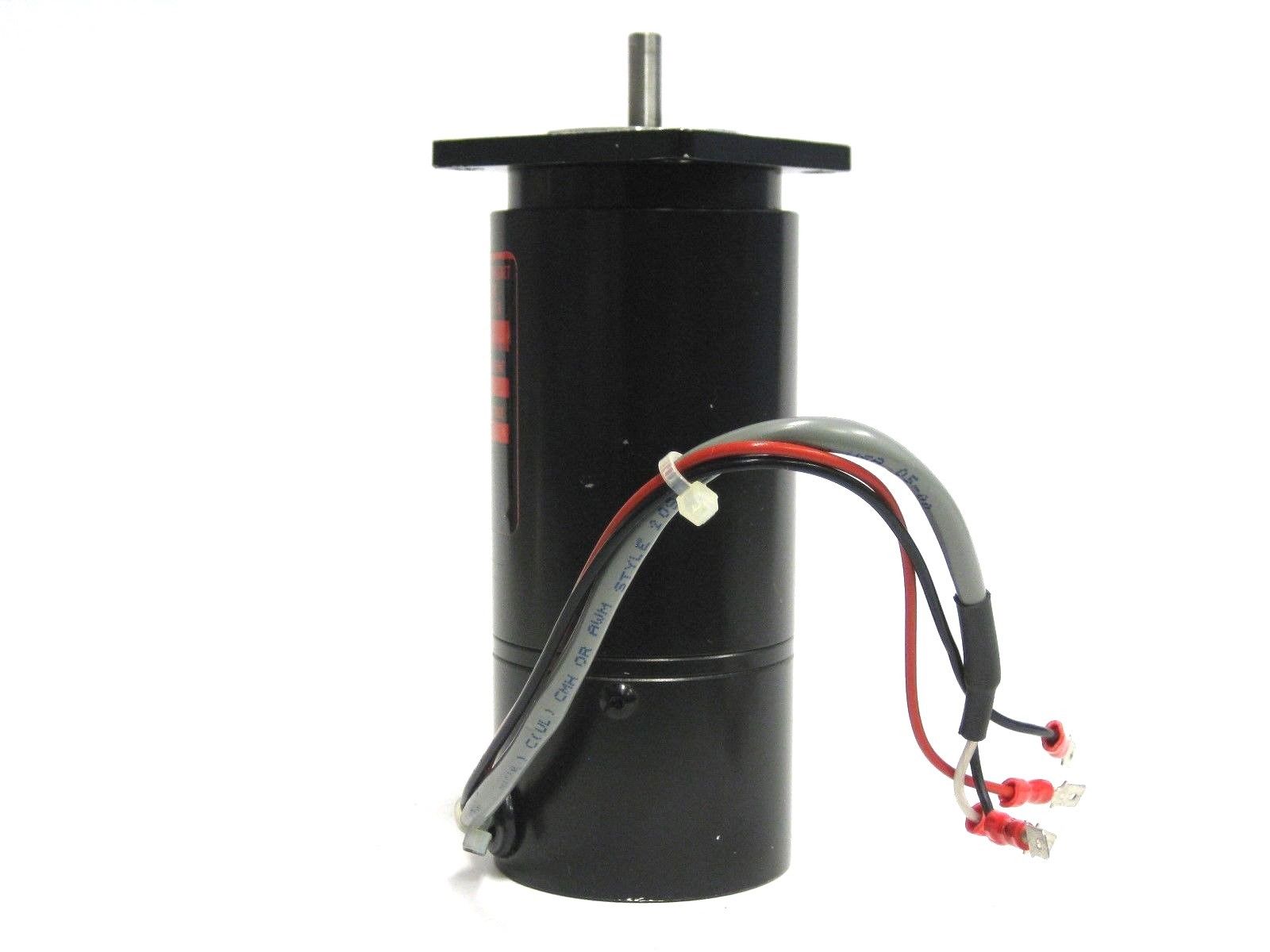

GM2320-16-02001810-031 Glentek Servo Motor

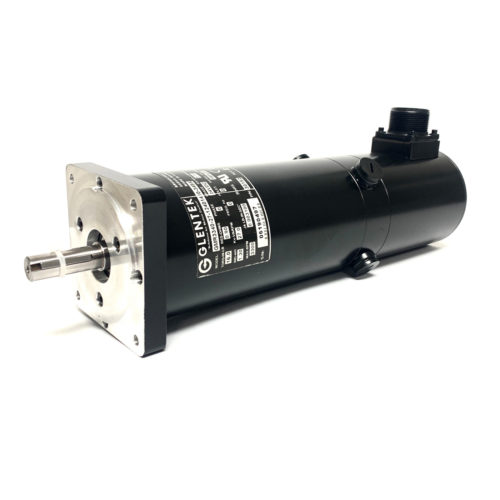

Glentek GM Series DC Brush Servo Motors

GM series DC brush servo motors utilize traditional ferrite magnets, which are ideal for cost sensitive applications. In addition, the higher inertia armatures provide improved motor to load inertia matching for medium to high inertia loads. This helps to reduce the mechanical shaft resonance, which allows higher servo gains with increased stability. All frame sizes incorporate skewed armatures, which provide ultra smooth operation (i.e. low cogging torque) at all speeds.

• Continuous Torque Range: 1.9 Lb-in (0.21 Nm) to 113 Lb-in (12.8 Nm)
• Peak Torque Range: 12.0 Lb-in (1.4 Nm) to 338 Lb-in (38.1 Nm)
