FKM42.45A.A3.010.11 Fagor AC Servo Motor – Used
$1,864.22

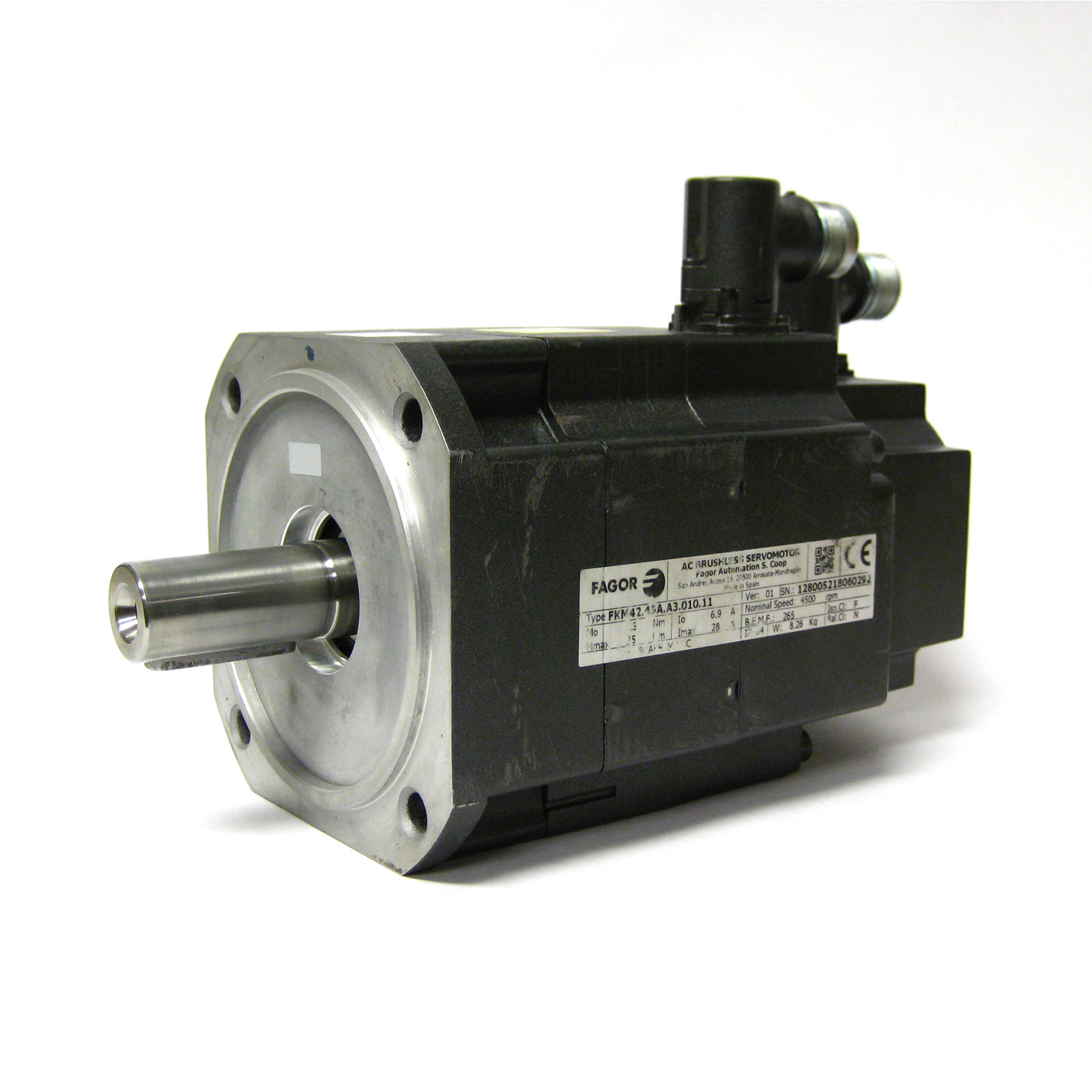

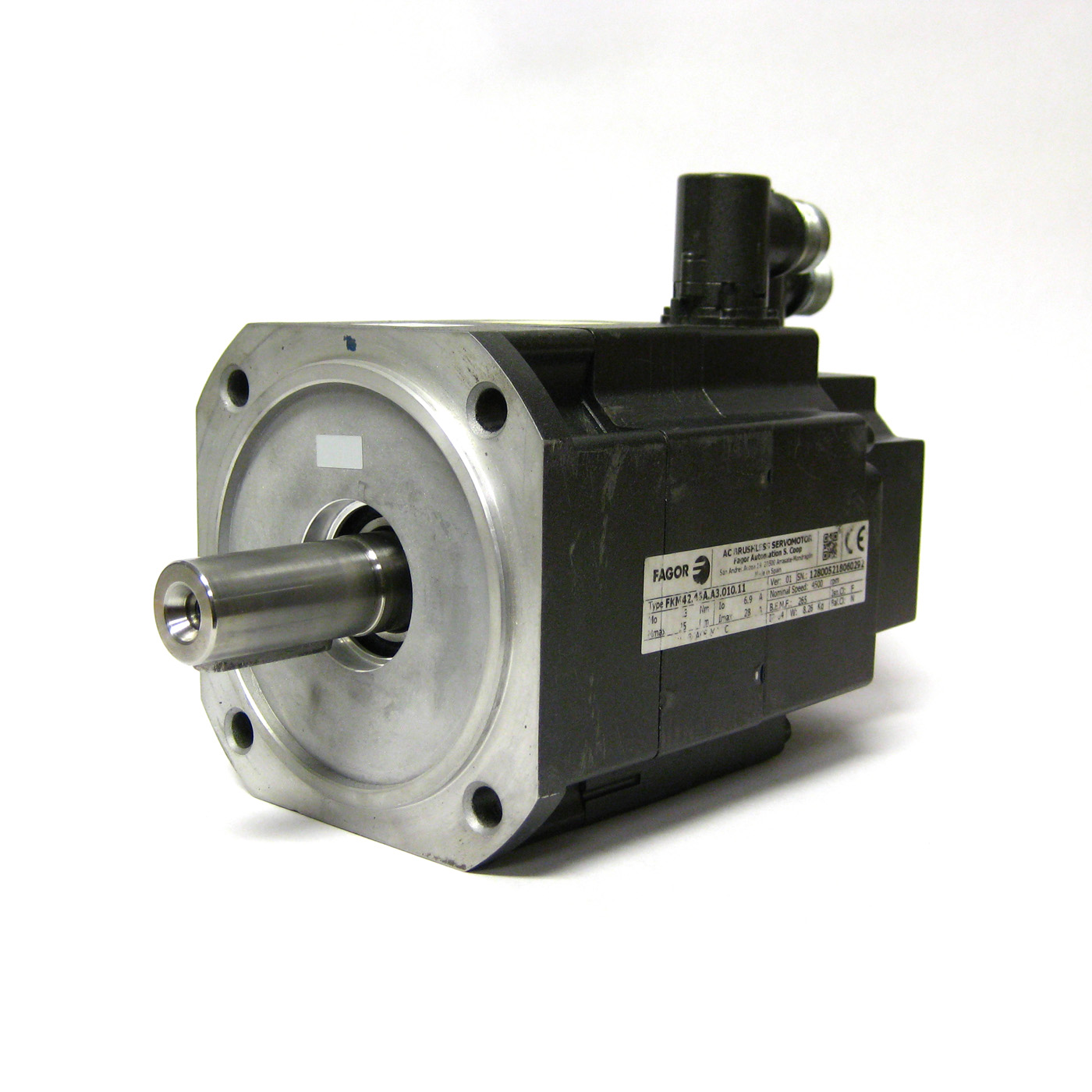

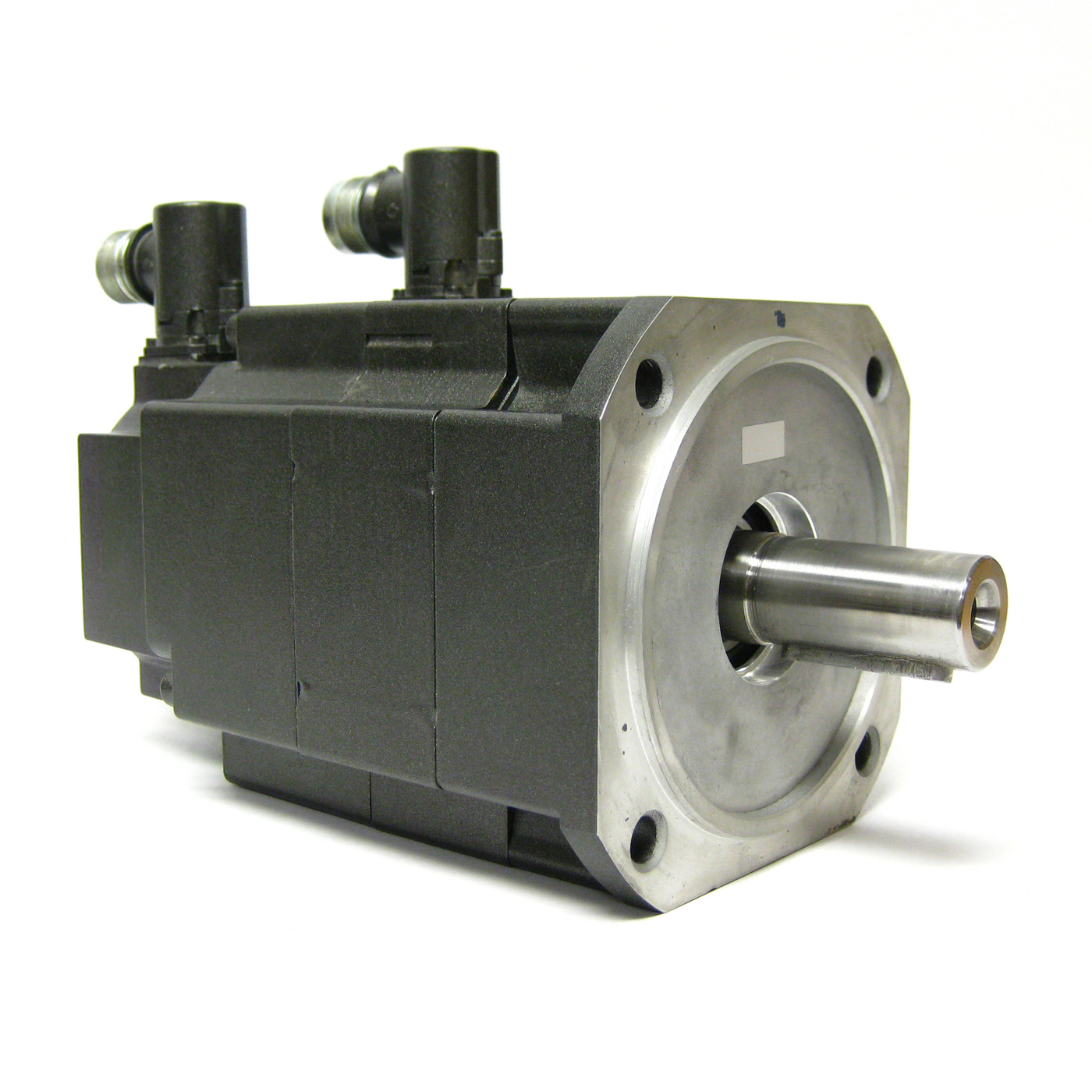

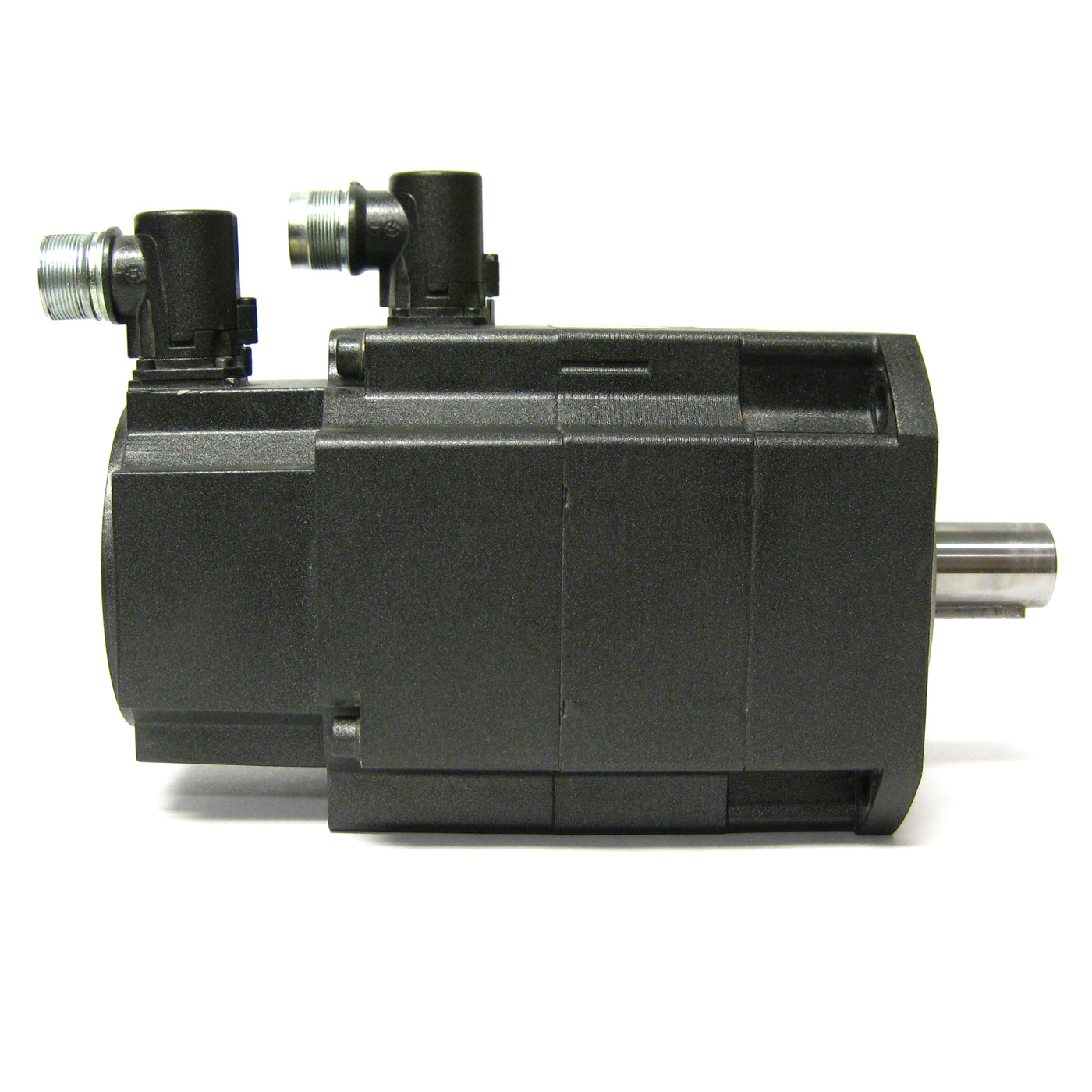

FKM42.45A.A3.010.11 Fagor brushless AC servo motor. Used condition.
In stock
CNC Router Services Tip
FKM model numbers that end in .11 are updated versions of the original model number. These models are a direct replacement for the original motor.
Servo Motor Lead Time & Availability
Servo motor lead time and availability varies. We recommend keeping a spare servo motor on the shelf to avoid costly downtime.
Product Description
FKM42.45A.A3.010.11 Fagor FKM series brushless AC servo motor, 4,500 RPM rated speed, 400 V AC winding, 1,024 line Multi-turn absolute sinusoidal encoder, with keyway, 24 V DC standard holding brake, standard fan and inertia, standard winding option, RTD Pt1000 thermoresistence temperature sensor. Used condition.
Additional Information
| Manufacturer Part Number | FKM42.45A.A3.010.11 |
|---|---|
| Rated Speed | 4,500 RPM |
| Voltage | 400 V AC |
| Encoder | Multi-turn absolute sinusoidal 1Vpp encoder, taper shaft, 1024 Count |
| Brand | FAGOR, Fagor Automation |
| Flange and Shaft Option | Half-key balancing, IP 64, With Keyway |
| Manufacturer | Fagor Automation |
| Holding Brake Option | 24 Vdc, Standard holding brake |
| Condition | Used |
| Fan and Inertia Option | Standard |
| Model | FKM42.45A.A3.010.11 |
| Winding Option | Standard |
| Speed | 4,500 RPM |
| Temperature Sensor | RTD Pt1000 thermoresistence |
| Stall torque | 6.3 N·m |
| Rated torque | 3.3 N·m |
| Stall current | 6.9 A |
| Power | 1.6 kW |
| Peak Torque | 25 N·m |
| Peak Current | 28 A |
| Calculated Power | 3 kW |
| Rated Power | 1.57 kW |
