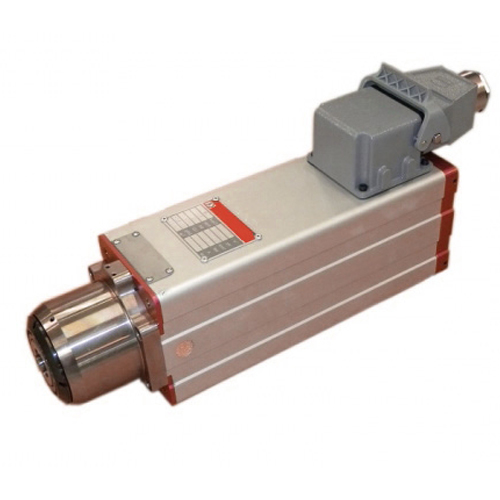

PDS DLC 90 ATC spindle motor
7.5 hp / 5.6 kW, 220 V / 380 V, HSK 40F
PDS DynaLOC™ Series

820-090-C010 PDS ATC Spindle

$9,576.00

820-090-C010 PDS ATC spindle motor, DynaLOC series, DLC 90, HSK 40F, air-cooled, 7.5 hp / 5.6 kW, 220 V / 380 V.

Product Inquiry
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
SKU: 820-090-C010 Categories: , Tags: , Brand:

Product Description

820-090-C010 PDS ATC spindle motor, Precision Drive Systems DynaLOC™ series, PDS DLC 90, HSK 40F, compressed air cooled, automatic tool change, standard raised T-box, Dyna-Loc HSK clamping, 7.5 hp / 5.6 kW, 18,000 – 24,000 RPM max speed, 300 / 400 Hz, 2 Pole, 220 V / 380 V.

Additional Information

Condition

New
Power

5.6 kW, 7.5 hp
Voltage

220 V, 380 V
Speed

18,000 RPM, 24,000 RPM
Cooling Method

Compressed Air
Maximum Output Frequency

300 Hz, 400 Hz
Poles

2
Tool Holder

HSK 40F
Brand

PDS
Manufacturer

PDS
Manufacturer Part Number

820-090-C010
Tool Change

Automatic Tool Change
Rated Power

5.6 kW

Related products

PDS DynaLOC™ Spindle Motors

DynaLOC™ are motor spindles with automatic tool change. Due to their light and compact design, a capacity of up to 20.0 kW and speeds of up to 24,000 rpm, theses spindles are just perfect for use in CNC router machines and robots. These motor spindles are available with an HSK tool holder.

PDS DynaLOC™ Series Features

  • Speeds up to 24.000 RPM
  • Power up to 20,0 kW
  • Automatic tool change
  • Compact and light weight design for machine tools and robotic applications
  • HSK tool holder
  • DynaLOC™ spindles feature a patent pending integrated tool clamping system
  • All cooling types
  • Encoder, optional

Spindle Motor Lead Time & Availability

Spindle motor lead time and availability varies up to a year. Our in stock spindle motors can ship within a day or two. Special orders for out of stock motors can have lead times from 4-6 weeks to 6-9 months or longer.
