DMS 3 Axis CNC Router C769 [SOLD]

SOLD: Used 3-axis CNC router, DMS, 5×10 vacuum table, moving gantry, 10 in stroke, 10hp HSD ATC spindle, Fagor 8055i CNC, Travaini vacuum pump.

SOLD: Used DMS 3-axis CNC router #C769 is equipped with 5′ x 10′ vacuum table, moving gantry, 10 inches of Z stroke, 10hp HSD ATC spindle motor, chiller and Renishaw probe for tool height setting. CNC router is controlled by a Fagor 8055i CNC system.

Used 3 Axis CNC Router Specifications

  • DMS Model 3B5i-5-10-10SCxLxx
  • Originally manufactured in 2008
  • 5×10 Vacuum Table
  • 10″ Z-axis stroke
  • 10hp HSD ATC spindle motor
  • Chiller
  • Renishaw probe tool height setter

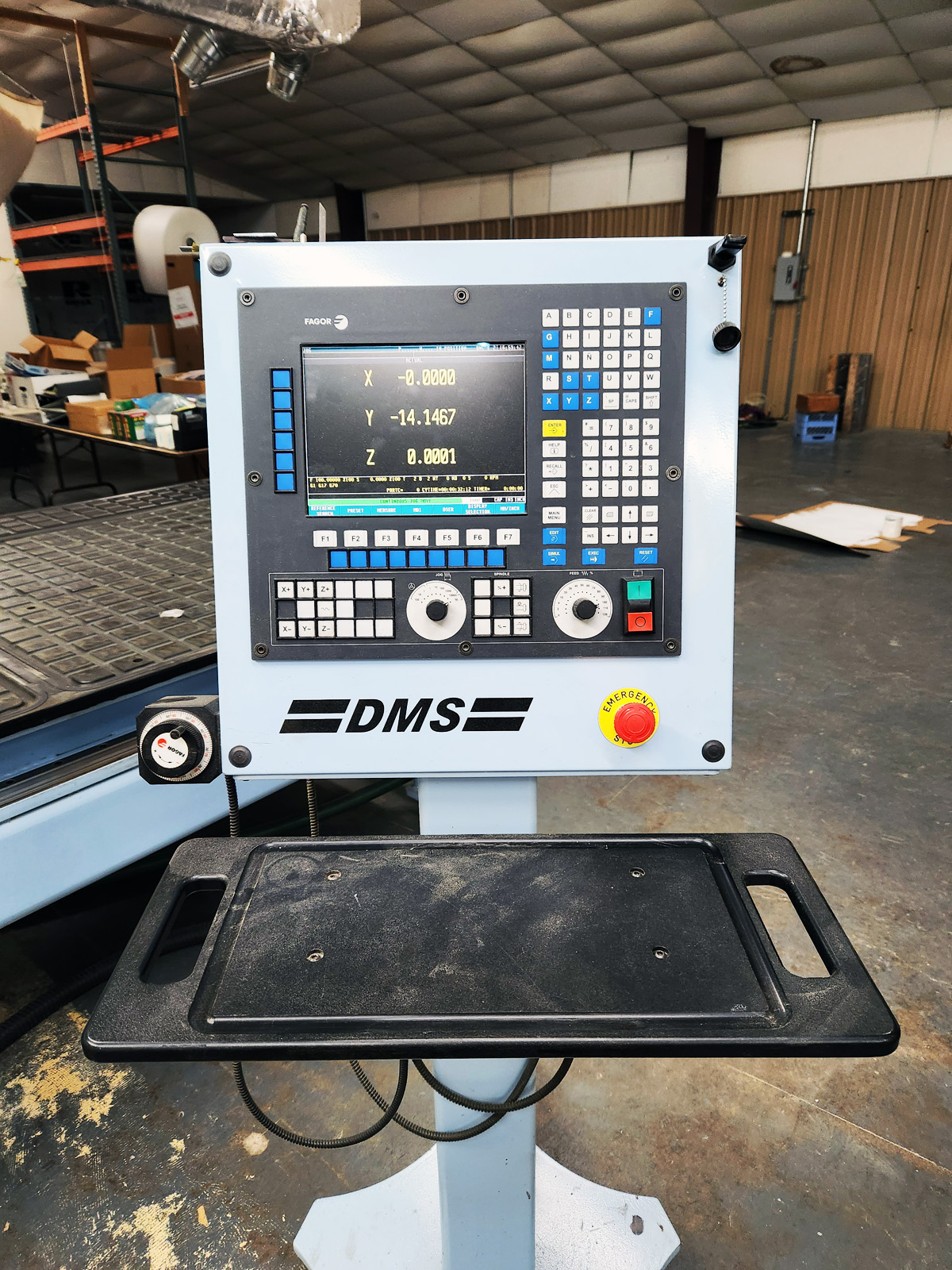

  • Fagor 8055i CNC system
  • 220 V / 3 phase power requirement
  • 50 amps
  • Used 9hp Traivaini vacuum pump included
  • Assorted used tooling included:
    • 9 Tool holders
    • ER 32 collets (see pictures)
  • Under power

Video Demonstration
